[안드로이드] Firebase AutoML Vision Edge를 이용하여 앱 제작

Firebase 연동은 생략하고 layout과 MainActivity만 올림

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <ProgressBar
        android:id="@+id/loading"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

    <ImageView
        android:id="@+id/image"
        android:layout_width="350dp"
        android:layout_height="500dp"
        android:scaleType="fitXY"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:orientation="horizontal">

        <Button
            android:id="@+id/button_album"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Album"
            android:layout_marginRight="10dp"
            app:layout_constraintStart_toStartOf="@+id/image"
            app:layout_constraintTop_toTopOf="@+id/image" />

        <Button
            android:id="@+id/button_capture"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Capture"
            app:layout_constraintStart_toStartOf="@+id/image"
            app:layout_constraintTop_toTopOf="@+id/image" />
    </LinearLayout>

    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:gravity="center"
        android:text="__________"
        android:textStyle="bold"
        app:layout_constraintBottom_toTopOf="@+id/button"
        app:layout_constraintStart_toStartOf="@+id/image"
        app:layout_constraintTop_toTopOf="@+id/button" />
</LinearLayout>

---

public class MainActivity extends AppCompatActivity {
    private ImageView imageView;
    private TextView textView;
    private ProgressBar bar;
    private static final int REQUEST_FILE = 10;
    private static final int PERMISSION_FILE = 20;
    private static final int REQUEST_CAMERA = 30;
    private static final int PERMISSION_CAMERA = 40;

    String currentPhotoPath;

    FirebaseAutoMLRemoteModel remoteModel =
            new FirebaseAutoMLRemoteModel.Builder("Fire_Scene_202079143722").build();
//    FirebaseAutoMLLocalModel localModel = new FirebaseAutoMLLocalModel.Builder()
//        .setAssetFilePath("model/manifest.json").build();
    FirebaseModelDownloadConditions conditions = new FirebaseModelDownloadConditions.Builder()
            .requireWifi()
            .build();

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Button buttonA = findViewById(R.id.button_album);
        Button buttonC = findViewById(R.id.button_capture);
        imageView = findViewById(R.id.image);
        textView = findViewById(R.id.textView);
        bar = findViewById(R.id.loading);

        bar.setVisibility(View.INVISIBLE);

        buttonA.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (ContextCompat.checkSelfPermission(MainActivity.this, Manifest.permission.WRITE_EXTERNAL_STORAGE) != PackageManager.PERMISSION_GRANTED) {
                    ActivityCompat.requestPermissions(MainActivity.this, new String[]{Manifest.permission.WRITE_EXTERNAL_STORAGE}, PERMISSION_FILE);
                } else {
                    Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
                    intent.setType("image/*");
                    startActivityForResult(Intent.createChooser(intent, "Select Picture"), REQUEST_FILE);
                }
            }
        });

        buttonC.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (ContextCompat.checkSelfPermission(MainActivity.this, Manifest.permission.CAMERA) != PackageManager.PERMISSION_GRANTED) {
                    ActivityCompat.requestPermissions(MainActivity.this, new String[]{Manifest.permission.CAMERA}, PERMISSION_CAMERA);
                } else {
                    dispatchTakePictureIntent();
                }
            }
        });
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if (resultCode == RESULT_OK) {
            Uri uri;
            switch (requestCode) {
                case REQUEST_FILE:
                    uri = data.getData();
                    FirebaseModelManager.getInstance().download(remoteModel, conditions);
                    setLabelerFromRemoteModel(uri);
                    textView.setText("");
                    imageView.setImageURI(uri);
                    break;
                case REQUEST_CAMERA:
                    File imgFile = new File(currentPhotoPath);
                    uri = Uri.fromFile(imgFile);
                    FirebaseModelManager.getInstance().download(remoteModel, conditions);
                    setLabelerFromRemoteModel(uri);
                    textView.setText("");
                    imageView.setImageURI(uri);
                    break;
            }
        }
    }
}

remoteModel이 아니라 localModel을 사용하기 위해선 assets/model폴더 안에 모델 관련 파일(txt, json, tflite)이 존재해야함

onCreate()의 중요 역할: 버튼 별 클릭 리스너

onActivityResult()의 중요 역할: requestCode에 따라 다른 이벤트를 발생시킴

---

    private void dispatchTakePictureIntent() {
        Intent takePictureIntent = new Intent(MediaStore.ACTION_IMAGE_CAPTURE);
        // 인텐트를 처리하기 위한 카메라 액티비티가 있는지 확인 (Ensure that there's a camera activity to handle the intent)
        if (takePictureIntent.resolveActivity(getPackageManager()) != null) {
            // photo 가 들어갈 임시 파일 생성
            File photoFile = null;
            try {
                photoFile = createImageFile();
            } catch (IOException ex) {
                // Error occurred while creating the File
            }
            if (photoFile != null) { // photoFile 이 성공적으로 만들어졌으면 진행
                Uri photoURI = FileProvider.getUriForFile(this,
                        "com.example.automlvisionedge.fileprovider",
                        photoFile);
                takePictureIntent.putExtra(MediaStore.EXTRA_OUTPUT, photoURI);
                startActivityForResult(takePictureIntent, REQUEST_CAMERA);
            }
        }
    }

CAPTURE버튼을 눌렀을 때 동작하는 함수

(기본 카메라 앱을 이용하여 사진을 캡처한 후 해당 이미지를 라벨링 할 수 있도록 전처리)

---

    private void setLabelerFromRemoteModel(Uri uri) {
        bar.setVisibility(View.VISIBLE);
        FirebaseVisionImageLabeler labeler;
        try {
            FirebaseVisionOnDeviceAutoMLImageLabelerOptions options =
                    new FirebaseVisionOnDeviceAutoMLImageLabelerOptions.Builder(remoteModel)
                            .setConfidenceThreshold(0.0f)
                            .build();
            labeler = FirebaseVision.getInstance().getOnDeviceAutoMLImageLabeler(options);
            FirebaseVisionImage image = FirebaseVisionImage.fromFilePath(MainActivity.this, uri);
            processImageLabeler(labeler, image);
        } catch (FirebaseMLException | IOException e) {
            e.printStackTrace();
        }
    }

리모트 모델을 통해 라벨러를 set하는 함수

리모트 모델: Firebase AutoML에 데이터세트를 추가시켜 학습시킨 후 게시된 모델

---

    private void processImageLabeler(FirebaseVisionImageLabeler labeler, FirebaseVisionImage image) {
        labeler.processImage(image)
                .addOnSuccessListener(new OnSuccessListener<List<FirebaseVisionImageLabel>>() {
                    @Override // 이미지 라벨링 성공
                    public void onSuccess(List<FirebaseVisionImageLabel> labels) {
                        bar.setVisibility(View.INVISIBLE);
                        for (FirebaseVisionImageLabel label : labels) {
                            String eachLabel = label.getText().toUpperCase();
                            float confidence = label.getConfidence();
                            textView.append(eachLabel + " : " + ("" + confidence * 100).subSequence(0, 4) + "%" + "\n");
                        }
                    }
                })
                .addOnFailureListener(new OnFailureListener() {
                    @Override // 이미지 라벨링 실패
                    public void onFailure(@NonNull Exception e) {
                        Toast.makeText(MainActivity.this, e.getMessage(), Toast.LENGTH_SHORT).show();
                    }
                });
    }

불러온 라벨러를 이용하여 이미지를 라벨링 및 confidence를 텍스트로 출력

---

    private File createImageFile() throws IOException {
        String timeStamp = new SimpleDateFormat("yyyyMMdd_HHmmss").format(new Date());
        String imageFileName = "JPEG_" + timeStamp + "_";
        File storageDir = getExternalFilesDir(Environment.DIRECTORY_PICTURES);
        File image = File.createTempFile(
                imageFileName,  /* prefix */
                ".jpg",   /* suffix */
                storageDir      /* directory */
        );

        // Save a file: path for use with ACTION_VIEW intents
        currentPhotoPath = image.getAbsolutePath();
        return image;
    }

기본 카메라 앱을 통해 촬영한 사진이 들어갈 임시 파일을 생성하는 함수

이 작업을 거치지 않으면 썸네일 수준인 낮은 해상도의 캡처 이미지가 ImageView에 보여지고 라벨링 또한 해당 이미지를 대상으로 처리함

---

앱 첫 화면

---

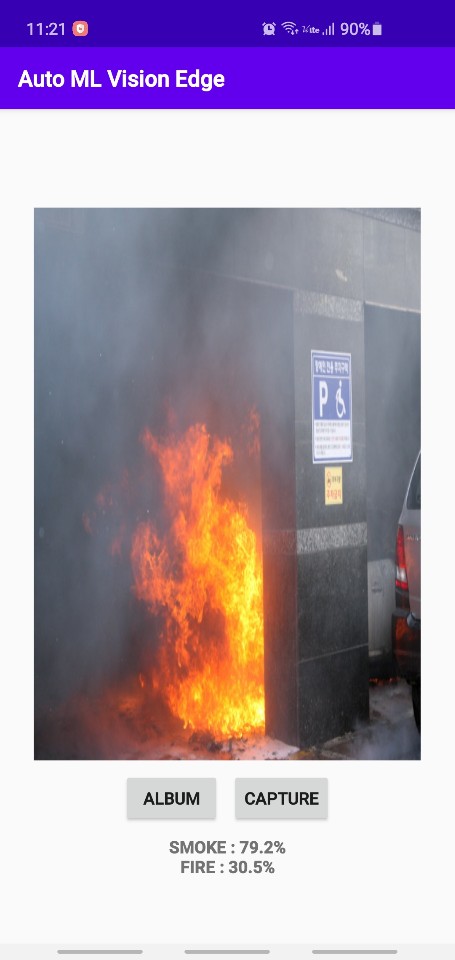

앨범에서 사진을 선택 후

본인은 불, 연기 사진을 각각 10장 씩 데이터세트에 넣었음

---

참고자료: https://firebase.google.com/docs/ml-kit/android/label-images-with-automl?hl=ko
